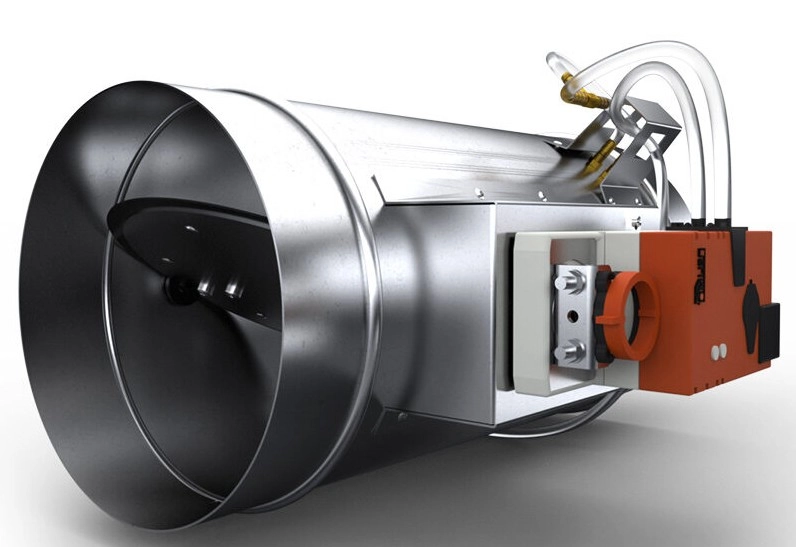

RVP-R CIRCULAR VAV REGULATOR
Intended Use / Function
- VAV regulator for automatic control of airflow in mechanical ventilation and air‑conditioning systems.
- Available in two operating‑speed versions:
- Standard version: damper shutter closing time 150 seconds
- Fast version: damper shutter closing time 3 seconds
- Ensures stable airflow control in supply and exhaust applications.
Operating Range
- 1–8 m/s or 2–12 m/s
Material
- Zinc‑plated steel (DX51D+Z275)
- Stainless steel 1.4301 (optional)
Performance / Design
- Housing and shutter made of zinc‑plated steel, or stainless steel 1.4301 on request.
- Damper partition equipped with sealing ensuring tight closure.
- Optional thermal‑acoustic insulation version: RVP‑Rt
Operating Pressure Range
- 50–1000 Pa
Air Leakage Class
- Air leakage class according to PN‑EN 1751:
- Class B3 for Dn100–125 mm
- Class C3 for Dn160–500 mm
Control Accuracy
- 10%
Operating Temperature Range
- 0–50°C
